Parameter
|
Model
|
EDS-ZL-120-001
|
|
|
Input
|
Power Supply
|
3P+N+PE
|
|
|
Input Voltage
|
400V/AC±15%
|
||
|
Input Frequency
|
50/60 Hz
|
||
|
Input PF
|
≥0.98
|
||
|
Input Current Total Harmonics
|
≤5%
|
||
|
Output
|
Output Rated Power
|
120kW
|
|
|
Output Rated Voltage
|
1000V/DC
|
||
|
Output Rated Current
|
120A
|
||
|
Output Voltage Arrange
|
150-1000V/DC
|
||
|

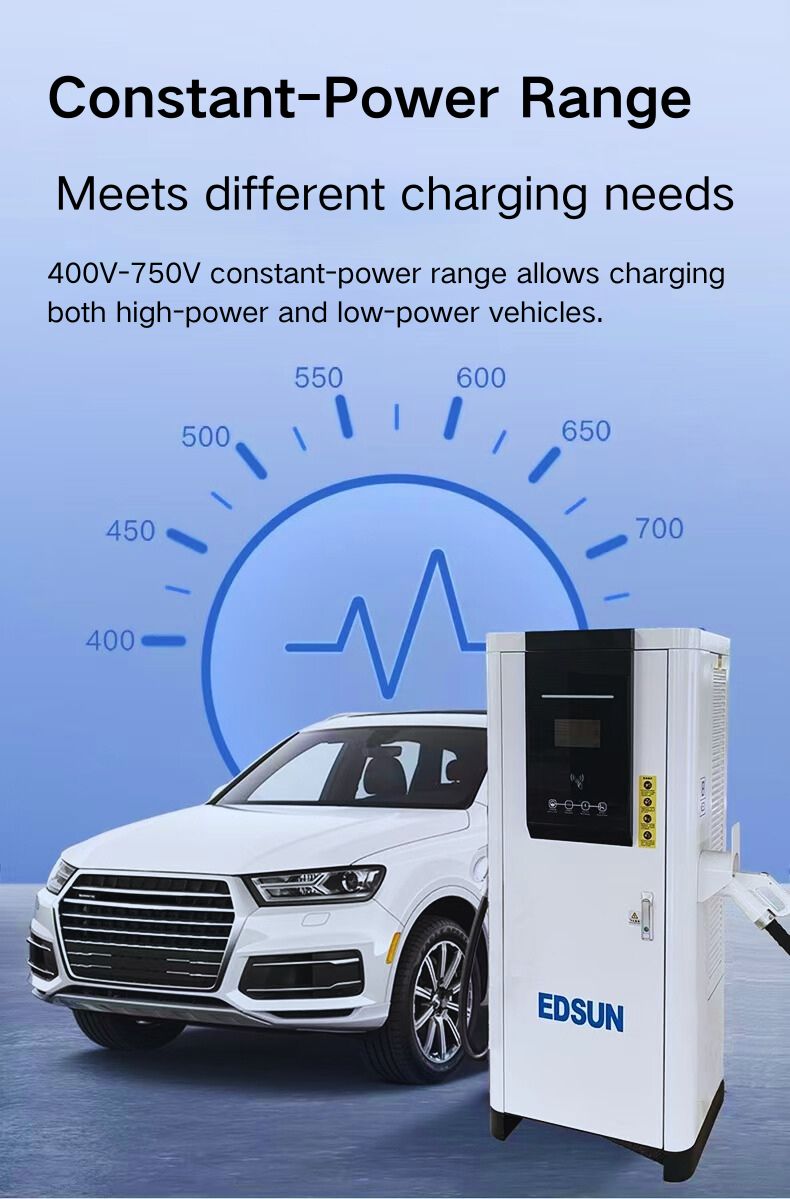

Constant Output Power Voltage Arrange
|
300-1000V/DC
|
||
|
Maximum Current of Each Charging head
|
200A
|
||
|
Current Arrange of Each Charging head
|
5-200A
|
||
|
Maximum Efficiency
|
≥95%
|
||
|
Precision of Steady Current
|
≤±1%
|
||
|
Precision of Steady Voltage
|
≤±0.5%
|
||
|
User Interface
|
Status Light
|
LED(Green , Yellow, Red)
|
|
|
LCD
|
7 "Touch LCD Screen
|
||
|
Charging Mode
|

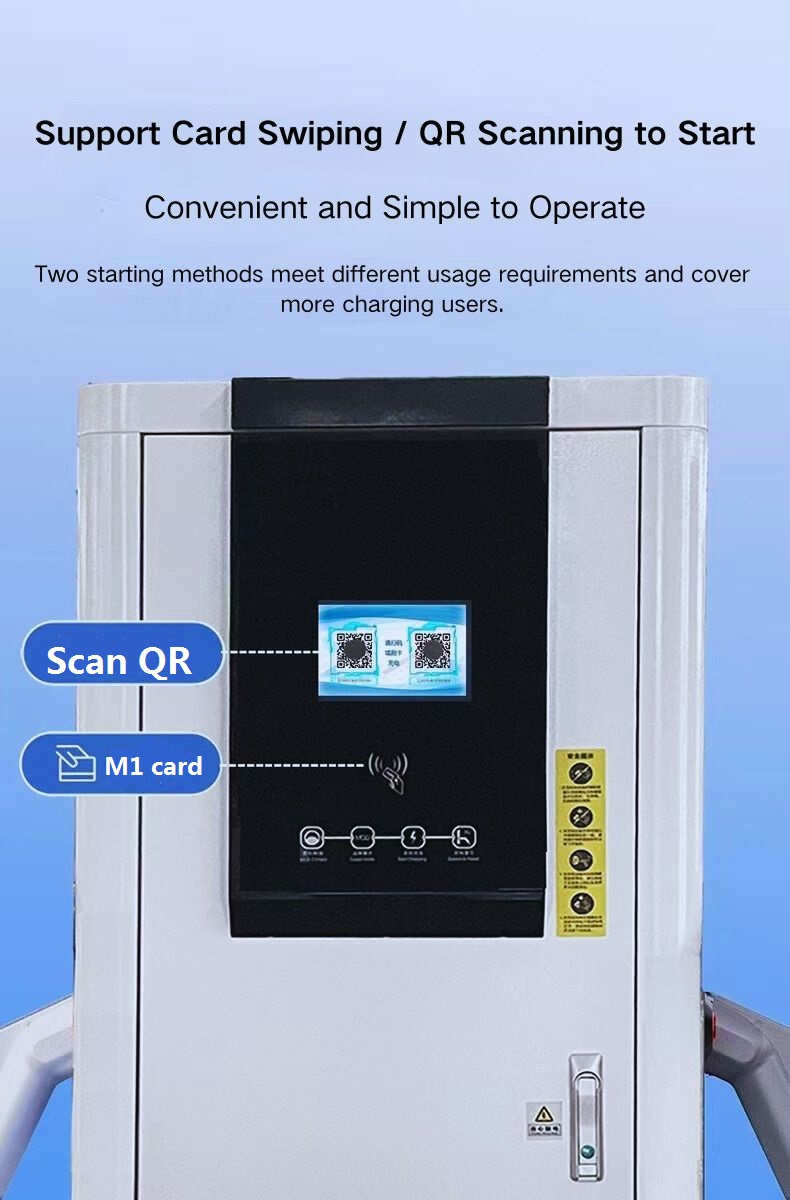

POS,Scann ,Passcode
|
||
|
Lenght of Charging Cable
|
5m
|
||
|
PCS Charging head
|
Two
|
||
|
Communication
|
LAN
|
Yes
|
|
|
4G-LAN
|
Yes
|
||
|
OCPP
|
OCPP1.6
|
||
|

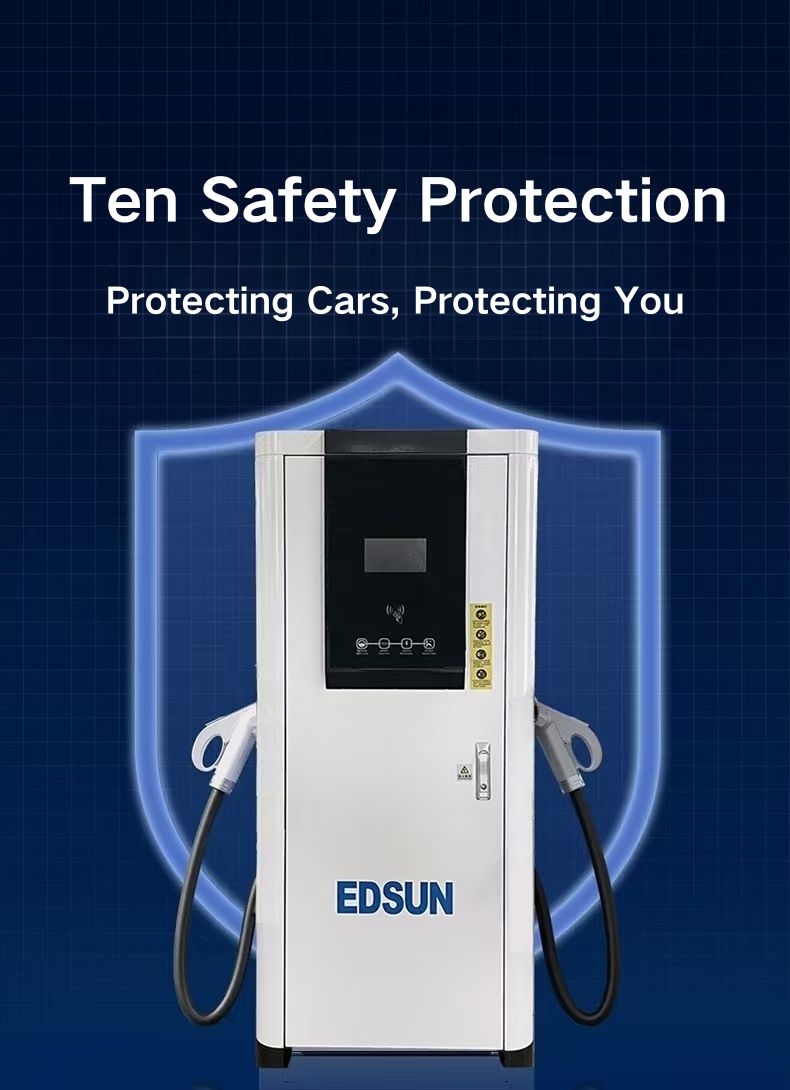

Protection
|
Short Circuit Protection
|
Yes
|
|
|
Over Load Protection
|
Yes
|
||
|
Over Temperature Protection
|
Yes
|
||
|
Leakage Protection
|
Yes
|
||
|
Over and Under Input Voltage Protection
|
Yes
|
||
|
Over and Under Output Voltage Protection
|
Yes
|
||
|
Output Over Current
|
|||
|
Standard
|
IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014,EN 61851-21-1:2018
|
||
|
Certificate
|
CE
|
||
|
Environmental
|
Operating Temperature
|
-20ºC~+55ºC
|
|
|
Storage Temperature
|
-40ºC~+85ºC
|
||
|
Relative Humidity
|
≤95% Dew Free
|
||
|
Altitude
|
≤2000m
|
||
|
Environmental Conditions
|
Indoor or Outdoor
|
||
|
Others
|
Cooling Mode
|
Air Cooling (Independent Air Duct)
|
|
|
Sound Volume
|
≤65dB
|
||
|
IP
|
IP54
|
||
|
Electric Energy Measurement
|
1.0 Accuracy Grade
|
||
|
Installation
|
Pole-mount
|
||
|
Production Dimension
|
585*750*1650mm (H*W*D)
|
||
|
Net Weight
|
300kg
|
||
|
Package
|
Wooden box Package
|
||
