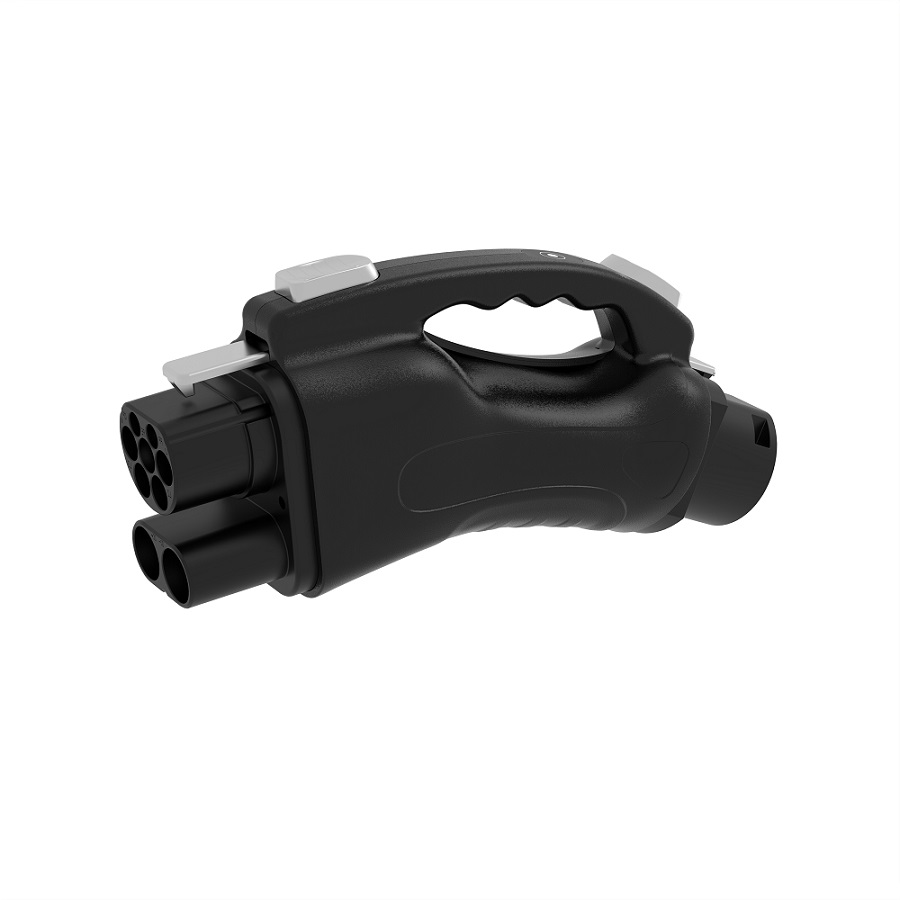

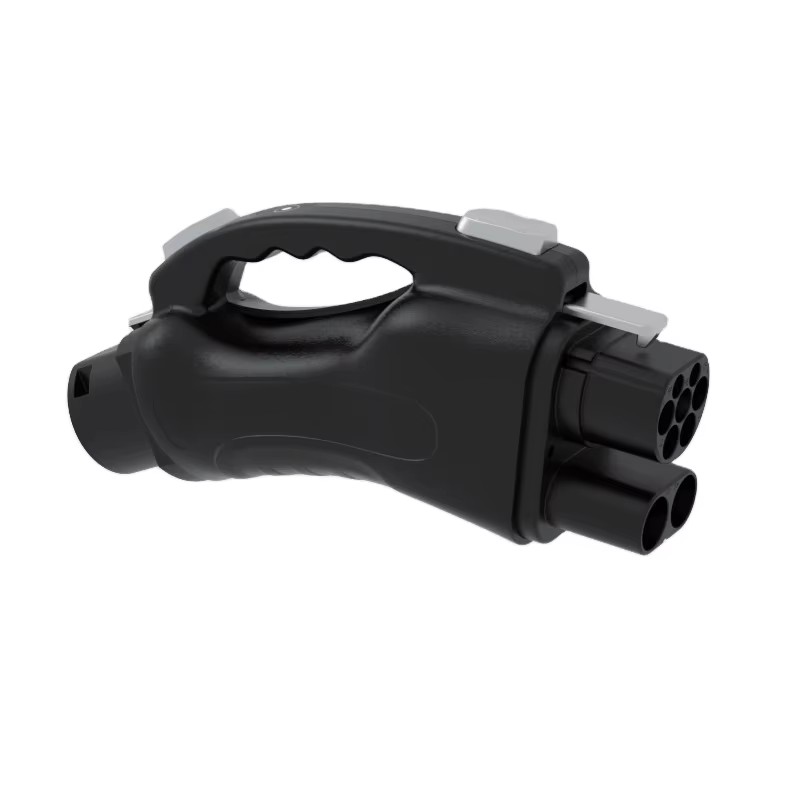

Ccs2 to Gb/t Car Charging Dc Adapter Ccs Combo 2 to Gbt Ev Charger Connector Ccs2 to Gbt Adapter
max charging power
300kw
max vaoltage
1000V DC
max current
300A DC
shell material
polyamide
ingress protection:
ip55
product size
266*94*167mm
net weight
3.3kg
package size:
310*115*170mm
total weight
3.5kg
Procedure of use

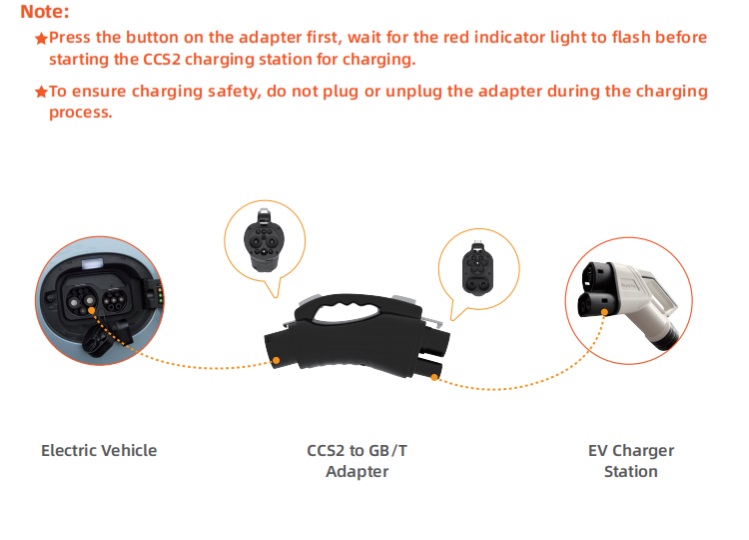

1.Before charging, make sure your GB/T electric vehicle is in the chargeable mode and open the vehicle's DC charging port. 2. Insert the GB/T port of the adapter into the DC charging port of the electric vehicle. 3. Insert the CCS2 charging gun head into the CCS2 port of the adapter and ensure it is securely fastened. 4. Press the button on the adapter handle, and the red power indicator light will flash rapidly at 1-second intervals. 5. Start charging on the CCS2 charging pile. Once the charging process begins, the red indicator light will remain on constantly .6. When the GB/T electric vehicle is fully charged or the charging pile stops charging, the red power indicator light will flash for 10 seconds and then turn off. First, unplug the CCS2 charging gun head,then unplug the adapter
